AirDog

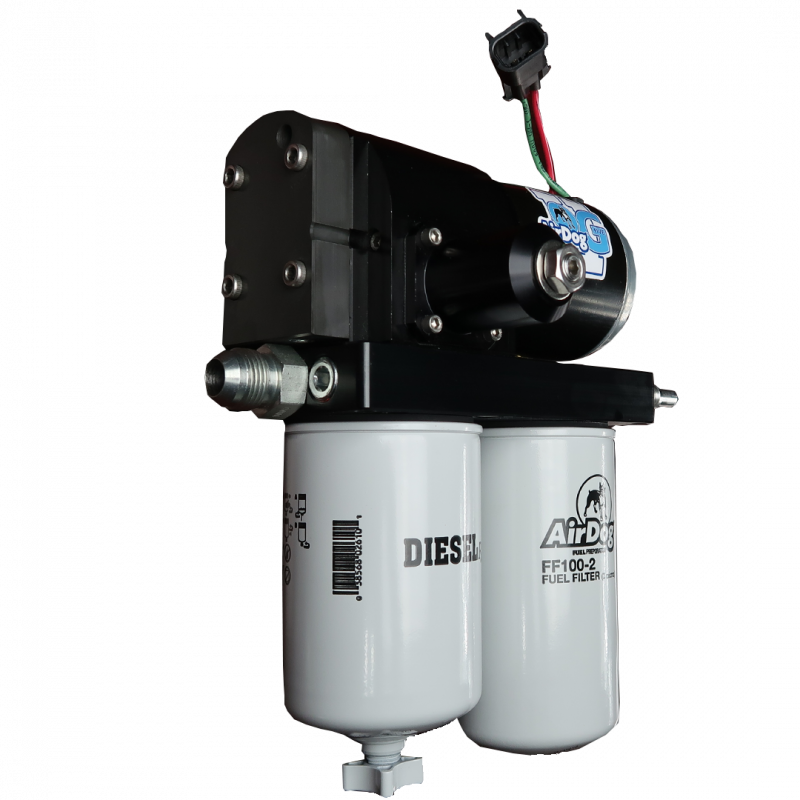

AirDog® II-5G Lift Pump for Powerstroke

AirDog® II-5G Lift Pump for Powerstroke

SKU:A7SABF592

Regular price $859.00 USD
Regular price Sale price $859.00 USD
Sale Sold out
Shipping calculated at checkout.

The Next Generation Fuel Air Separation System

An industry first! The AirDog® II-5G is the first diesel Fuel Air Separation System to include an integrated diaphragm fuel pressure regulator. This regulator allows for more fuel pressure adjustability, offers better fuel flow at pressure, and can be boost compensated! This system has larger porting to allow less cavitation and noise at the inlet of the higher flowing 220GPH pumps. All AirDog II-5G systems come with improved wiring harnesses and connectors as well! The wiring harness is now 12ga from the battery all the way to the internal connections in the motor. A Metri-Pack 280 connector replaces the Deutch 2 pin connector which allows more more current flow without creating excessive heat. All other connectors in the harness are weather pack to keep the elements out. This system has the same 4G motor technology that has proven itself to be a reliable, quiet operating system. It also retains the "Demand Flow" of the older AirDog II variants. Demand Flow means whatever fuel the injection system does not consume gets recirculated back through the filter base.

The AirDog® II-5G offers protection and performance like no other lift pump! Our patented air separation, along with a water separator and fuel filter makes sure your expensive injection system components get all the clean fuel they need. The AirDog® II-5G also overcomes loss of power due to driving in higher altitudes with a factory fuel pump.

The AirDog® II-5G System Improves Engine Performance by eliminating spray pattern disruption due to air entering the system. This allows the engine to keep its designed injection timing which allows a more complete burn of the fuel entering the cylinder. This increases overall engine efficiency across the power and torque range!

The AirDog® II-5G will come in 2 flow rated systems for the initial release, 165GPH for high pressure Ford and Dodge P-Pump applications and the 220GPH that will replace all of our DF-200-4G applications.



View full details
