S&S Diesel Cummins High Pressure CP3 Pump

Cummins SuperSport CP3 – New – (higher output >3,500 rpm)

Cummins 10mm CP3  – New – (1,325 mm³ /rev displacement)
Cummins 10mm High Speed CP3  – New – (1,325 mm³ /rev displacement, high speed optimized)

Cummins 12mm CP3  – New – (1,590 mm³ /rev displacement)
Cummins 12mm High Speed CP3  – New – (1,590 mm³ /rev displacement, high speed optimized)
Cummins 12mm High Speed CP3 (1,590 mm³ /rev displacement) | New | with SP3000 Supply Pump (3,000 L/hr)

Cummins 14mm CP3  – New – (1,850 mm³ /rev displacement)
Cummins 14mm High Speed CP3  – New – (1,850 mm³ /rev displacement, high speed optimized)
Cummins 14mm High Speed CP3 (1,850 mm³ /rev displacement) | New| with SP3000 Supply Pump (3,000 L/hr)

Download SP3000 Supply Pump Data Sheet

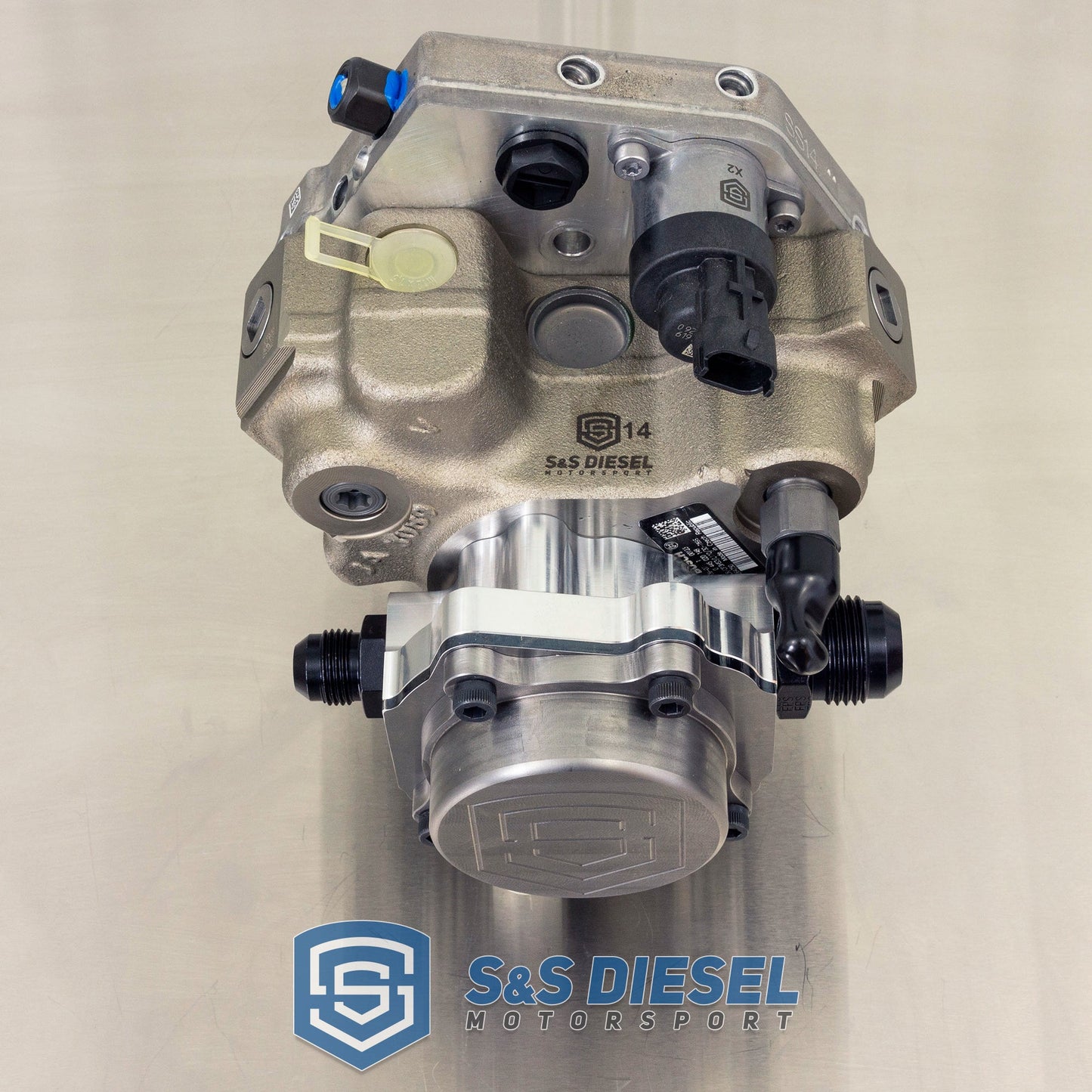

The SP3000 is a single mechanical solution that replaces the small factory supply pump, and will flow up to 3,000 l/hr, at pressure. It is designed to be used with the S&S Regulated Filter Head and Gear Pump Delete kits to create a Fuel Delivery System (FDS) capable of supporting up to four 14mm CP3 (1,850 mm3 /rev displacement) high pressure pumps.

-Flow Rate – 3,000 liters per hour
-Max Pressure – 400 psi
-Volume – 13,000 mm3/rotation
-Weight – 1,271 g
-Aluminum and Steel Construction
-Inlet Fitting Sized For Initial Flow Control
